Swiss Side Pion

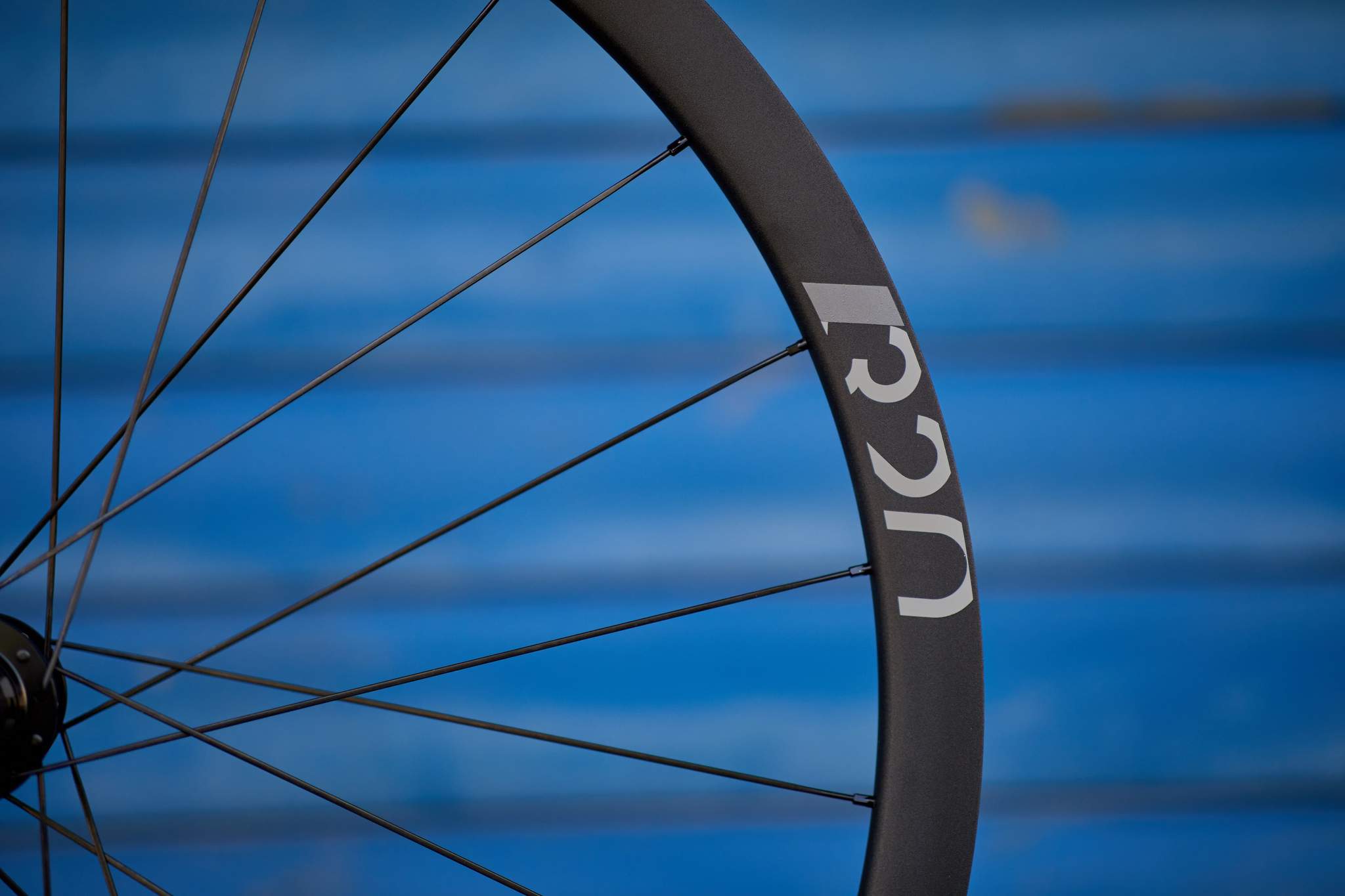

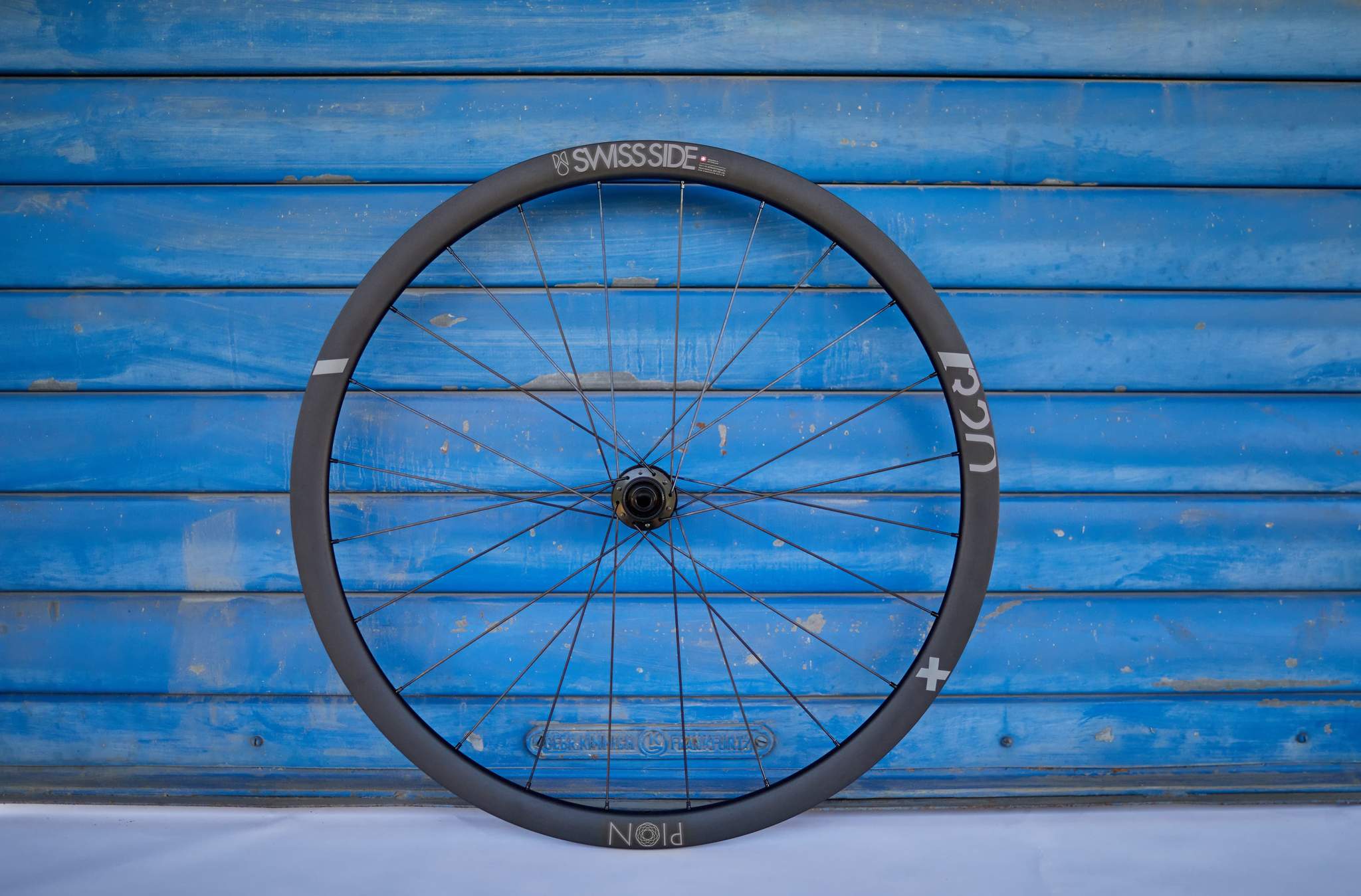

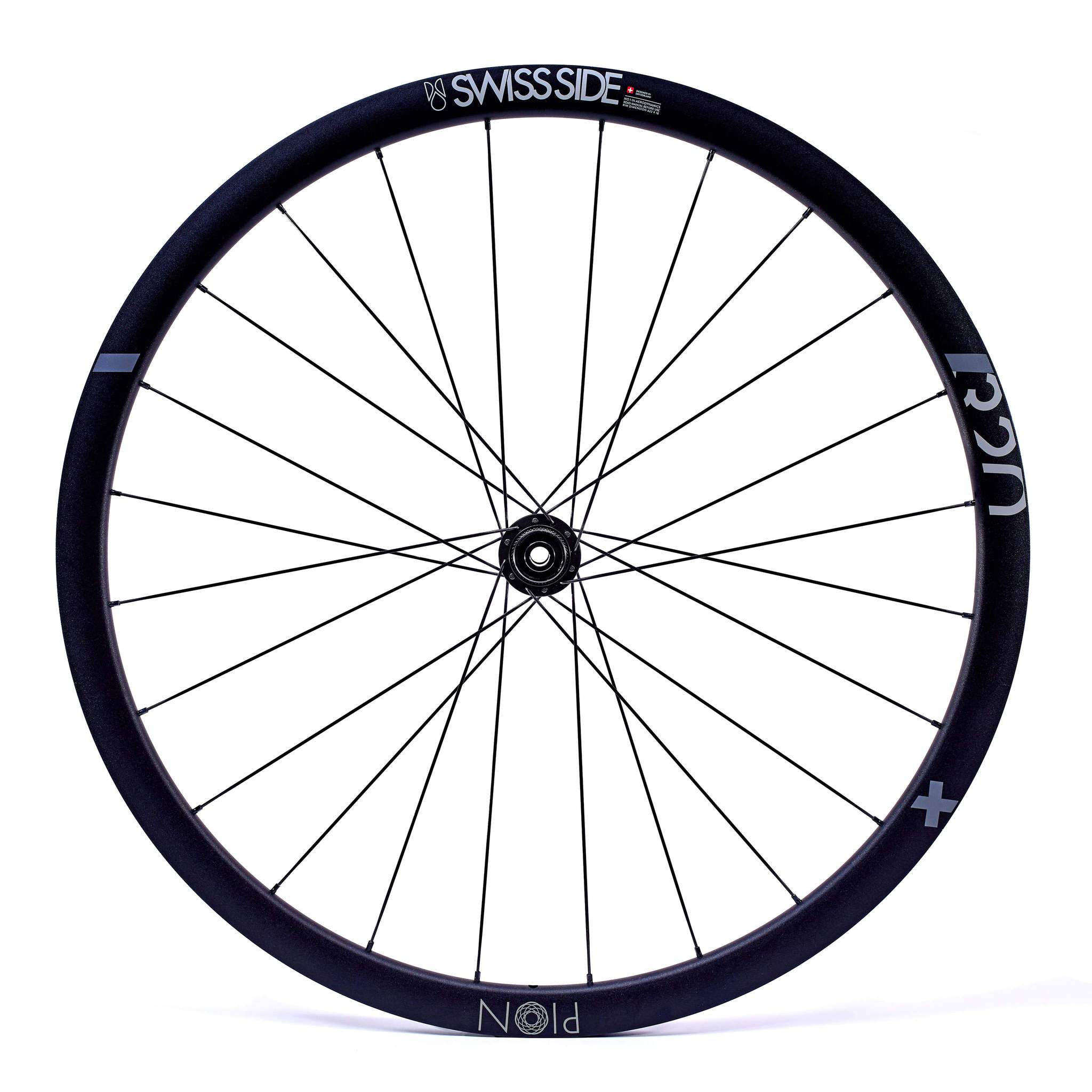

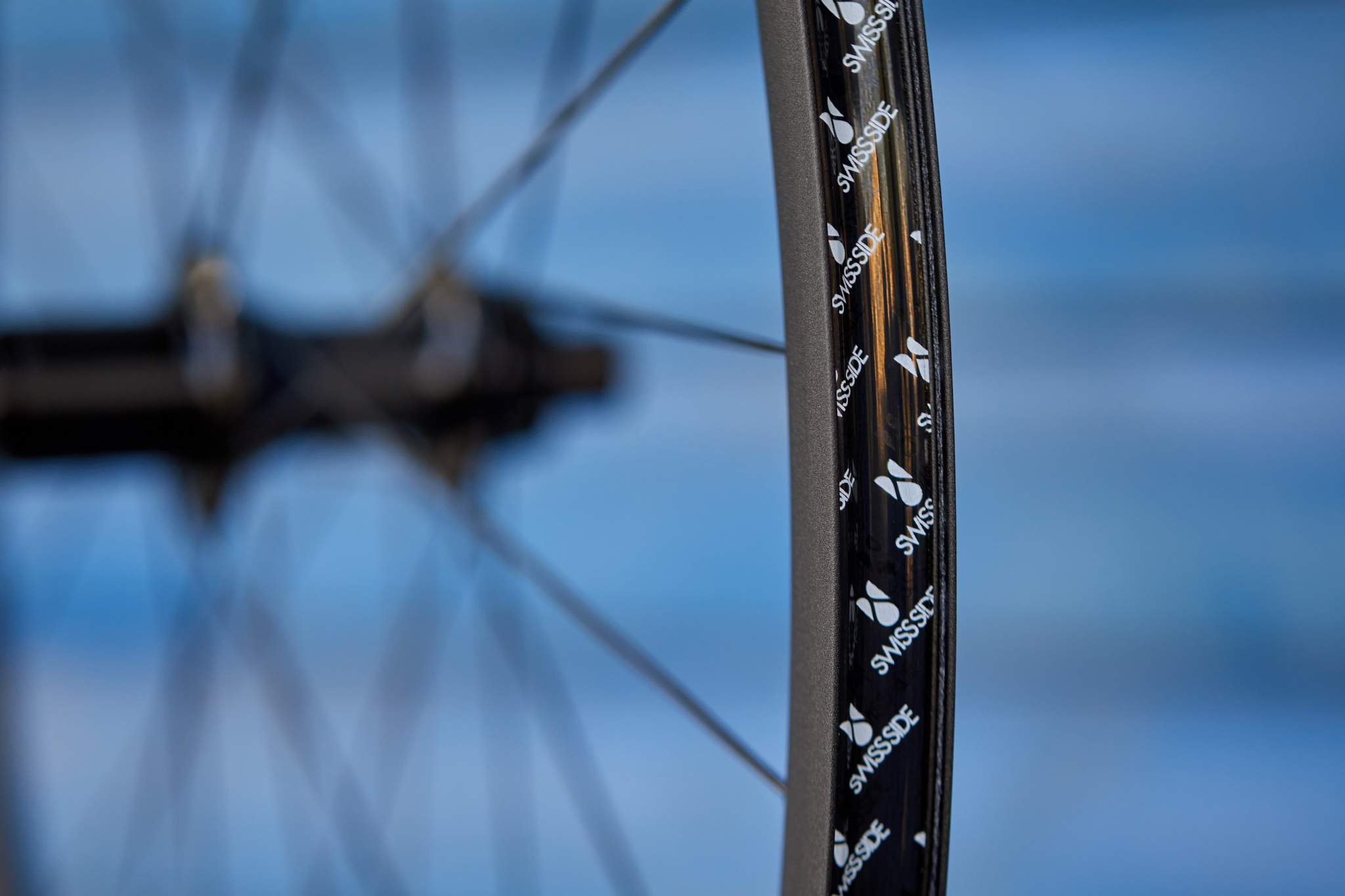

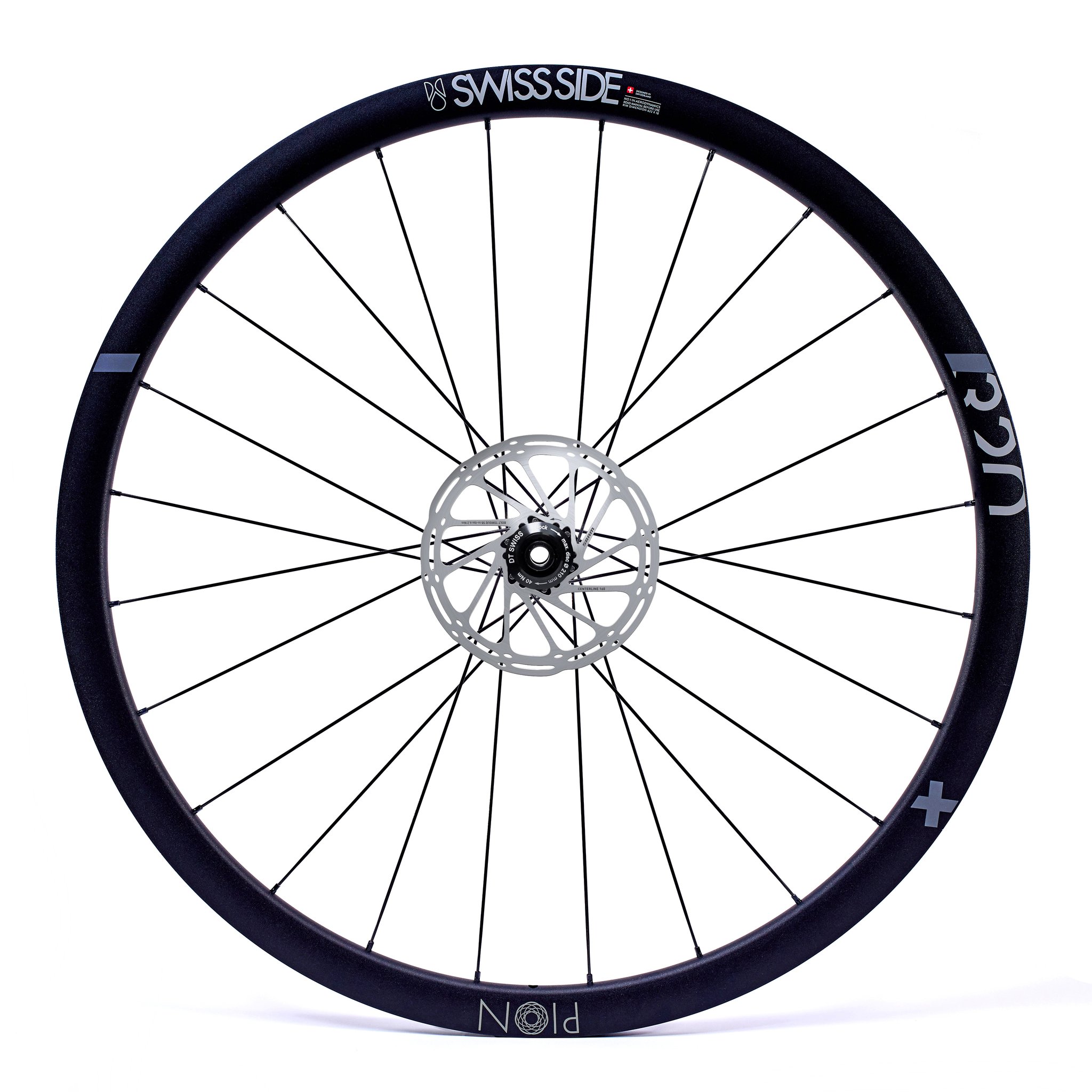

HADRON Classic wheel line. Together with DT Swiss Aero Comp bladed spokes and lightweight aluminium nipples, the PION is a high performance allrounder which can accommodate almost all riders with an allowable system weight of 130kg. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured. Set weight = 1783g Rim Brake / 1809g Disc Brake.
Fram/bak
Pris
Fram
1 980 SEK
Bak
1 980 SEK
Beskrivning
Art.nr: SS-Pion
COMPATIBILITY
Shimano, SRAM 10&11 speed cassettes (standard). XDR Driver & Campagnolo compatible with freehub kits available separately.
SPOKES
DT Swiss Aero Comp J-bend spokes with DT Swiss ProLock standard aluminium nipples. Front Rim Brake (radial 1:1): 20 spokes. Rear Rim Brake (radial / 3-cross 2:1): 24 spokes. Front Disc Brake (2-cross 1:1): 24 spokes. Rear Disc Brake (2-cross 1:1): 24 spokes.

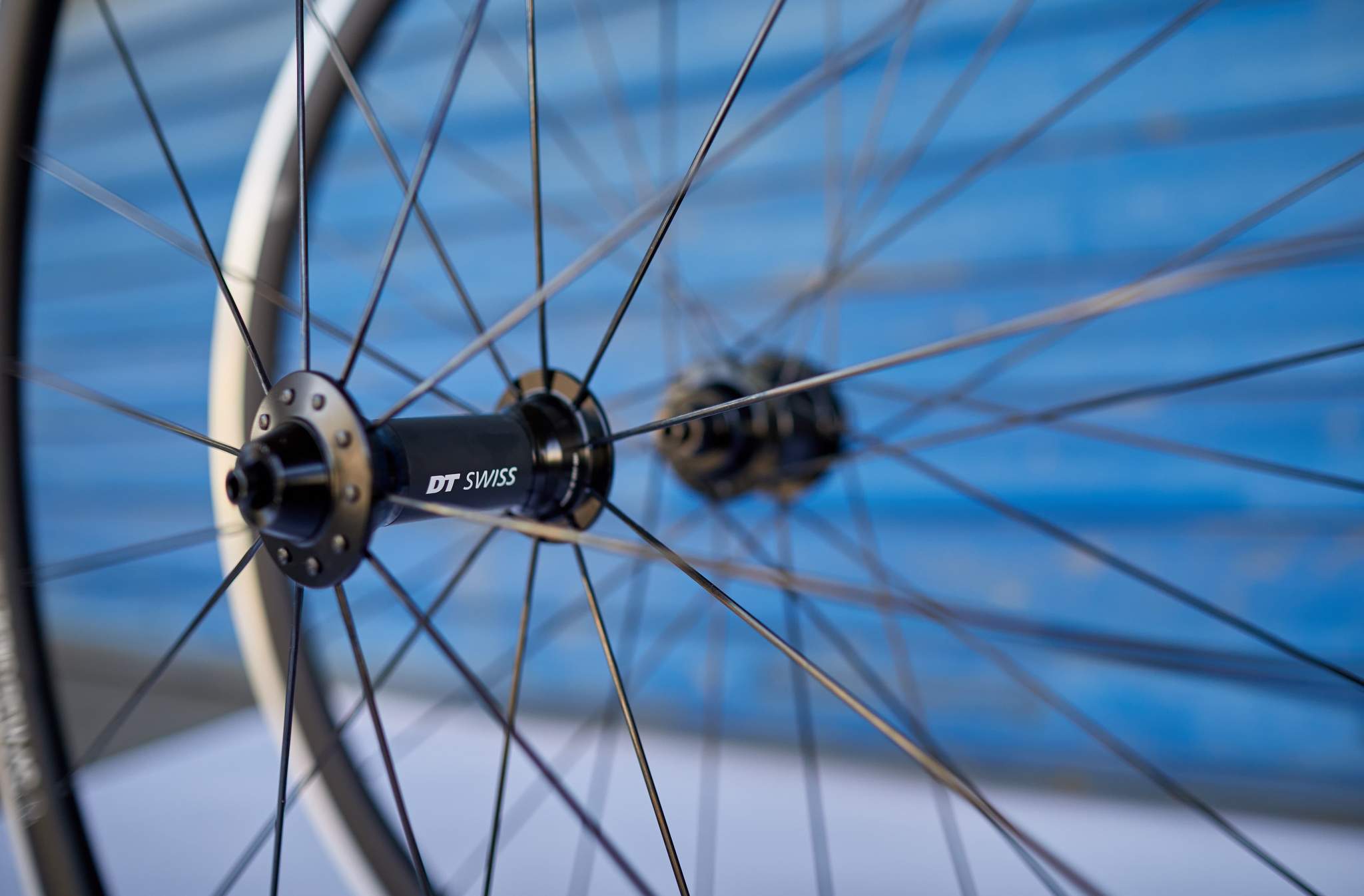

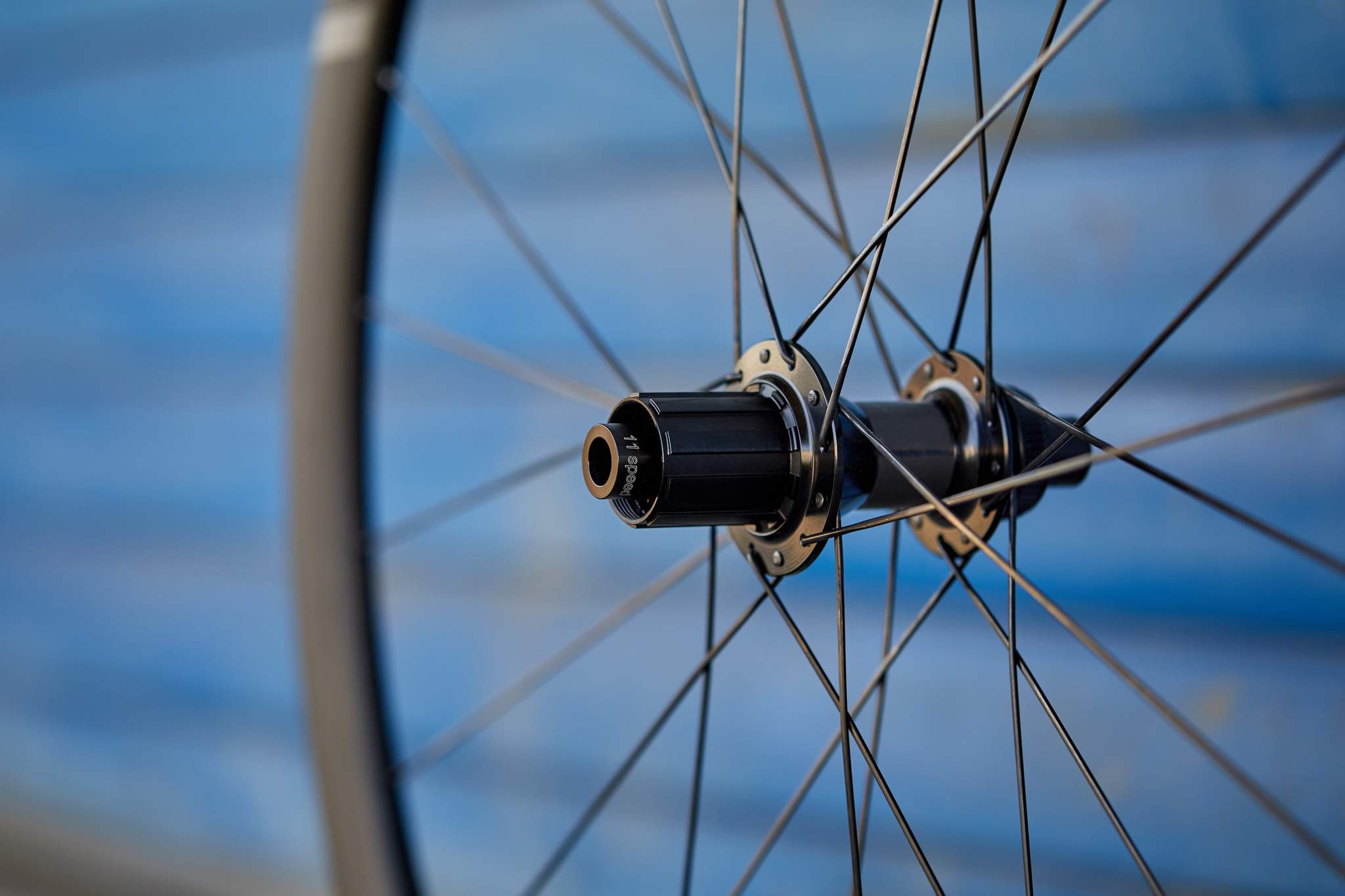

HUB
DT Swiss 370, custom for Swiss Side. Rim brake wheel hub/axle dimensions are: 5mm x 100mm front / 5mm x 130mm rear. Disc brake wheel hubs/axle dimensions are: 5mm x 100mm, 12 x 100mm front / 5mm x 135mm, 12 x 142mm rear.
BEARINGS
- High end stainless steel bearings
- Low friction thanks to single sided seals
- 2080 N load capacity per bearing
- Minimal bearing clearance
